View Entire PDF
Select CAD Format
The following formats are available.
CAD Download

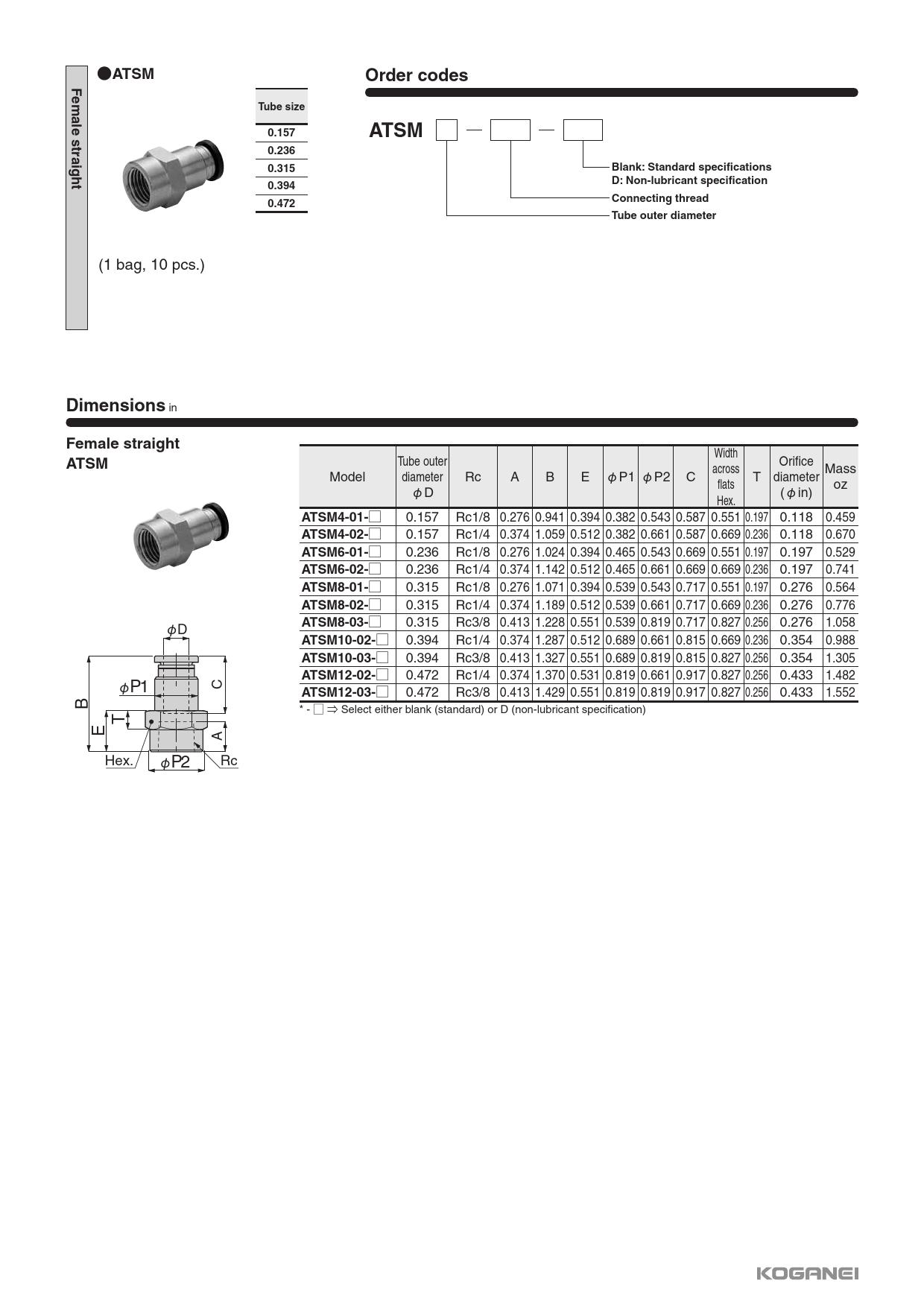

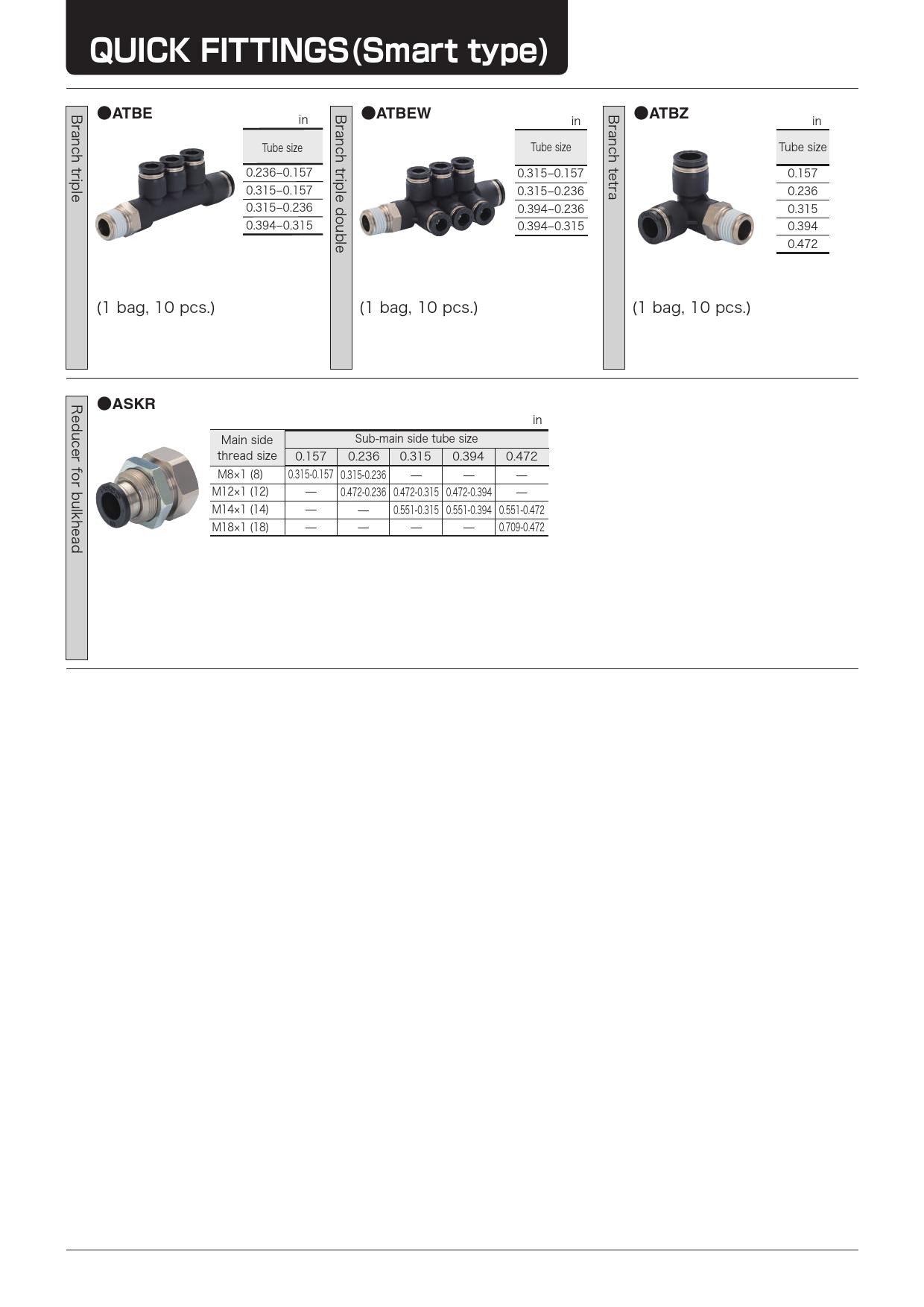

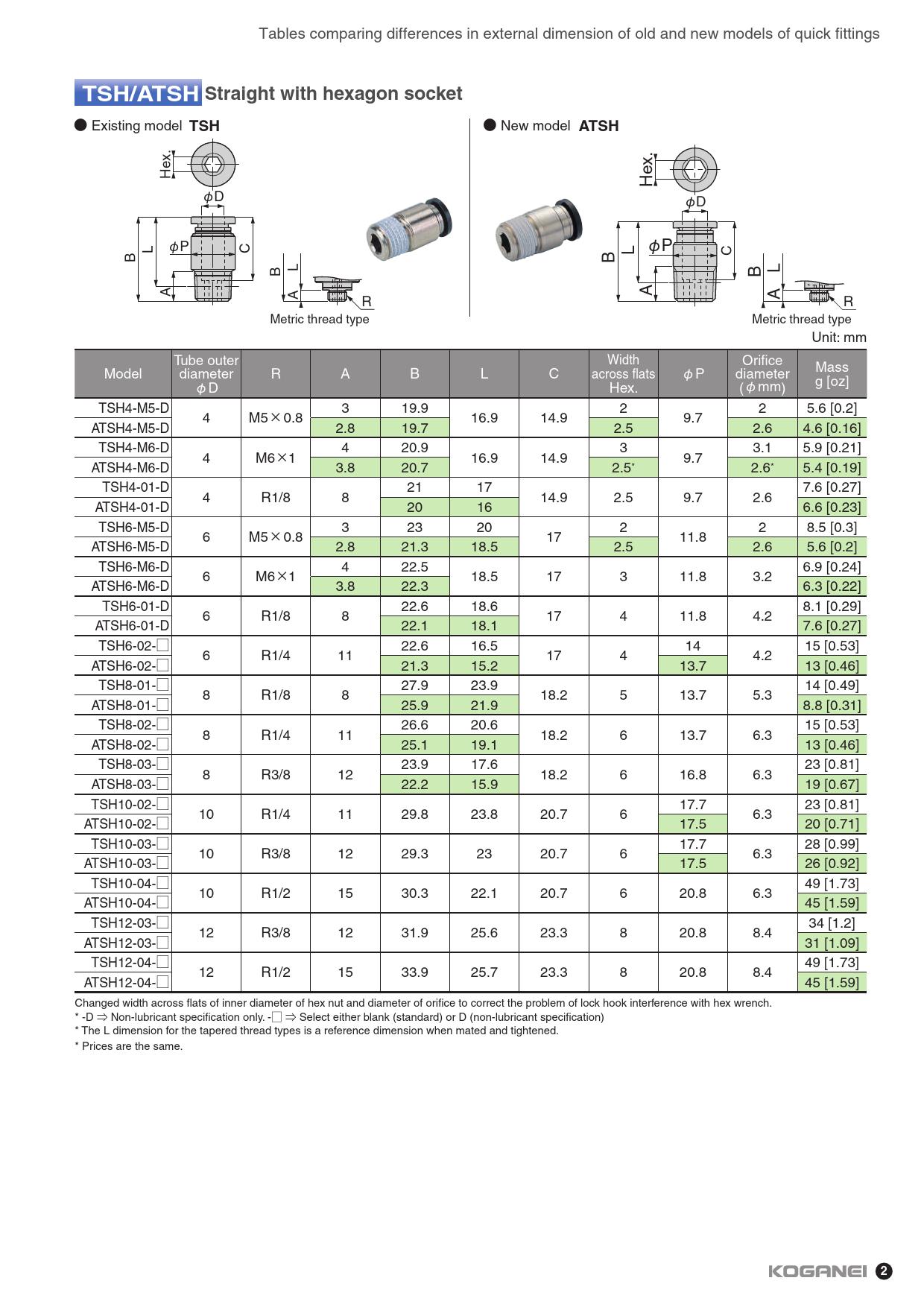

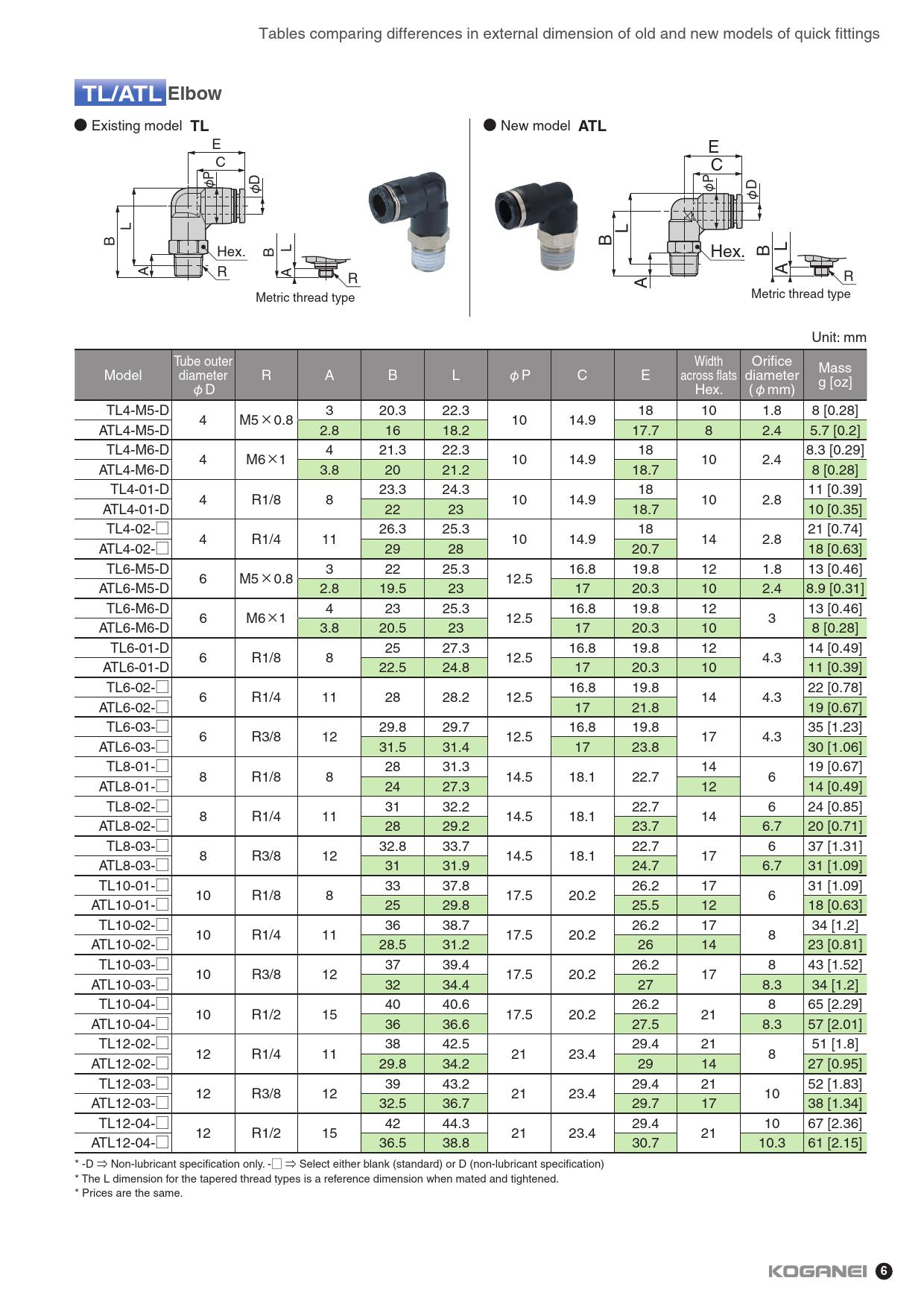

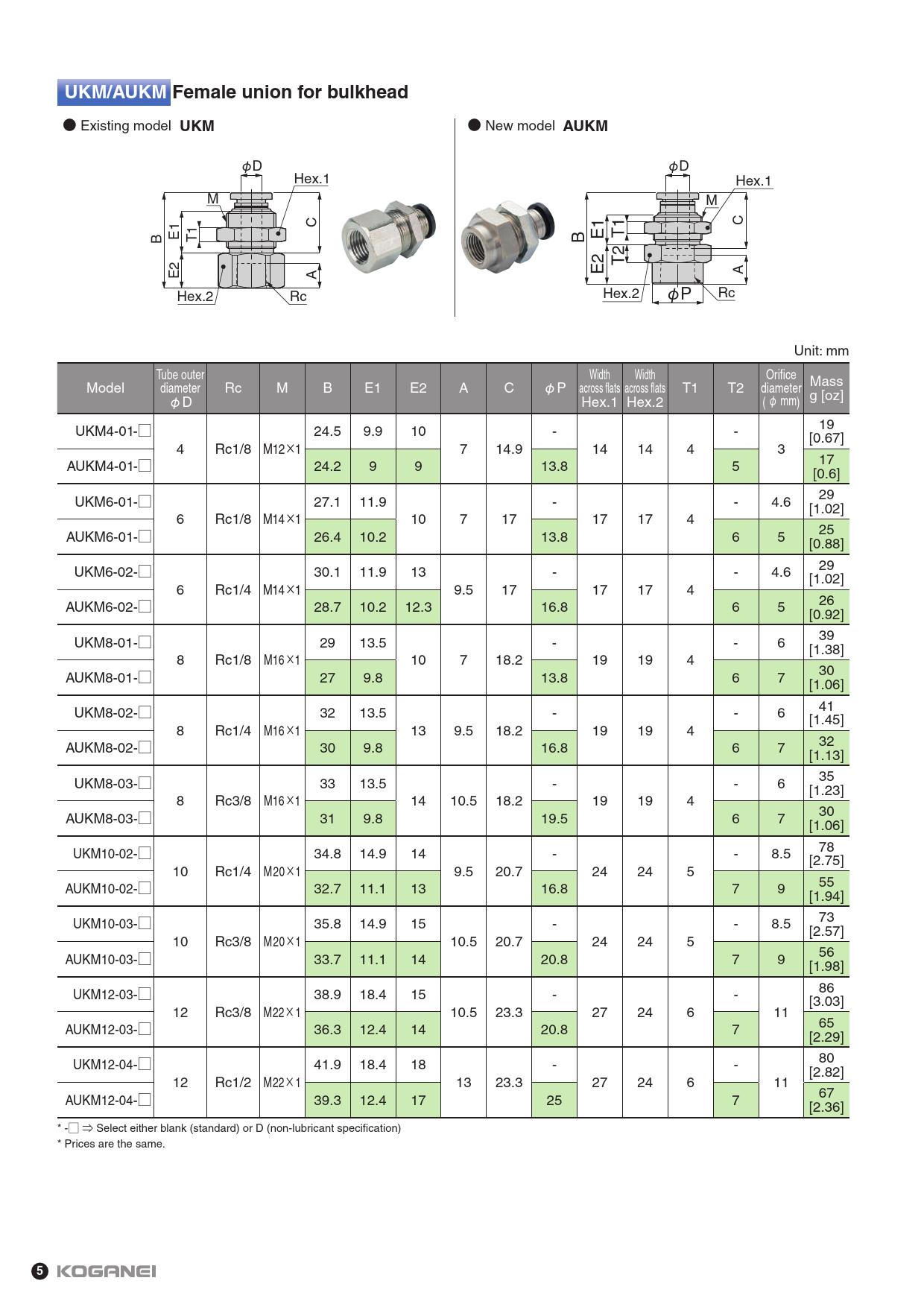

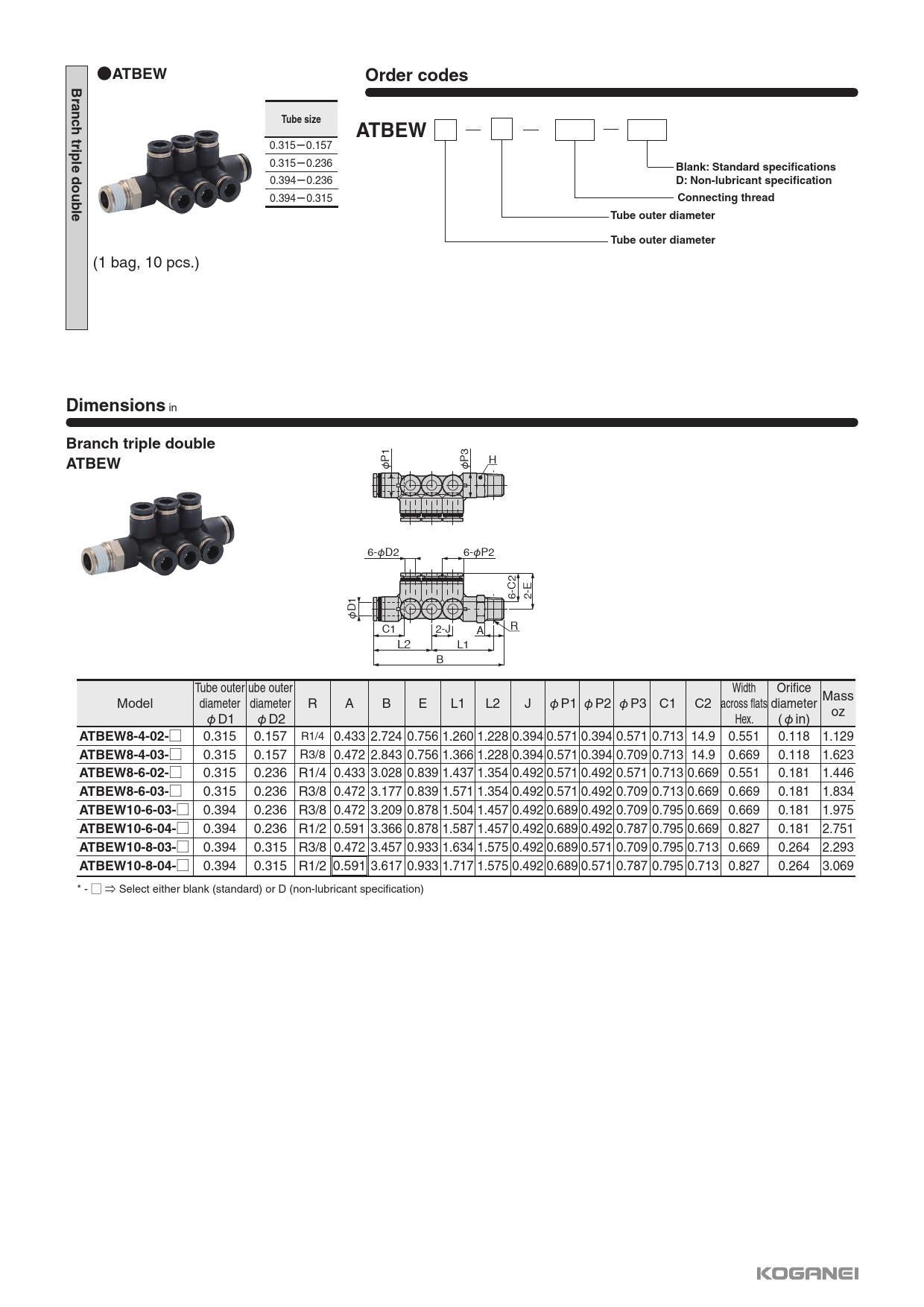

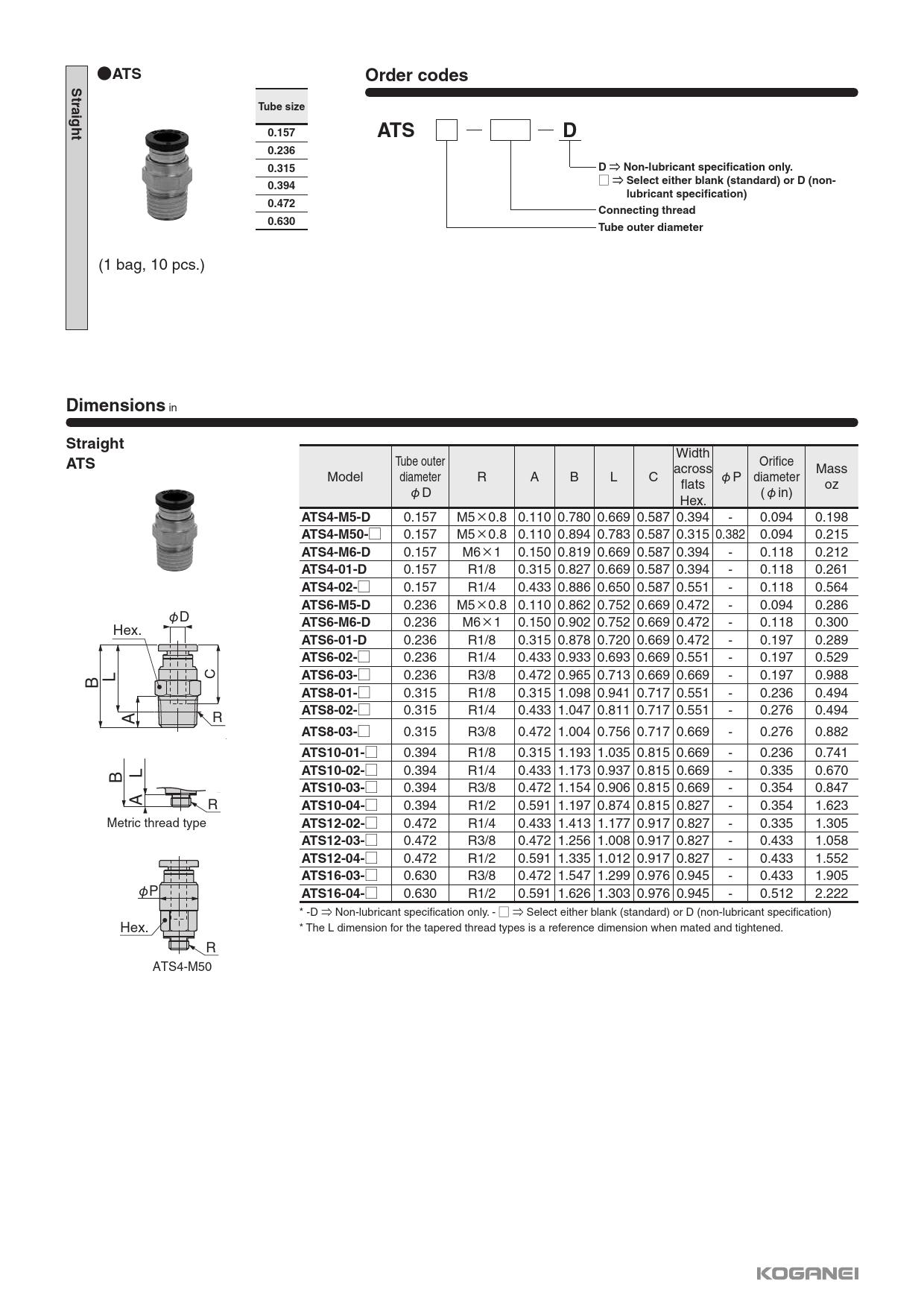

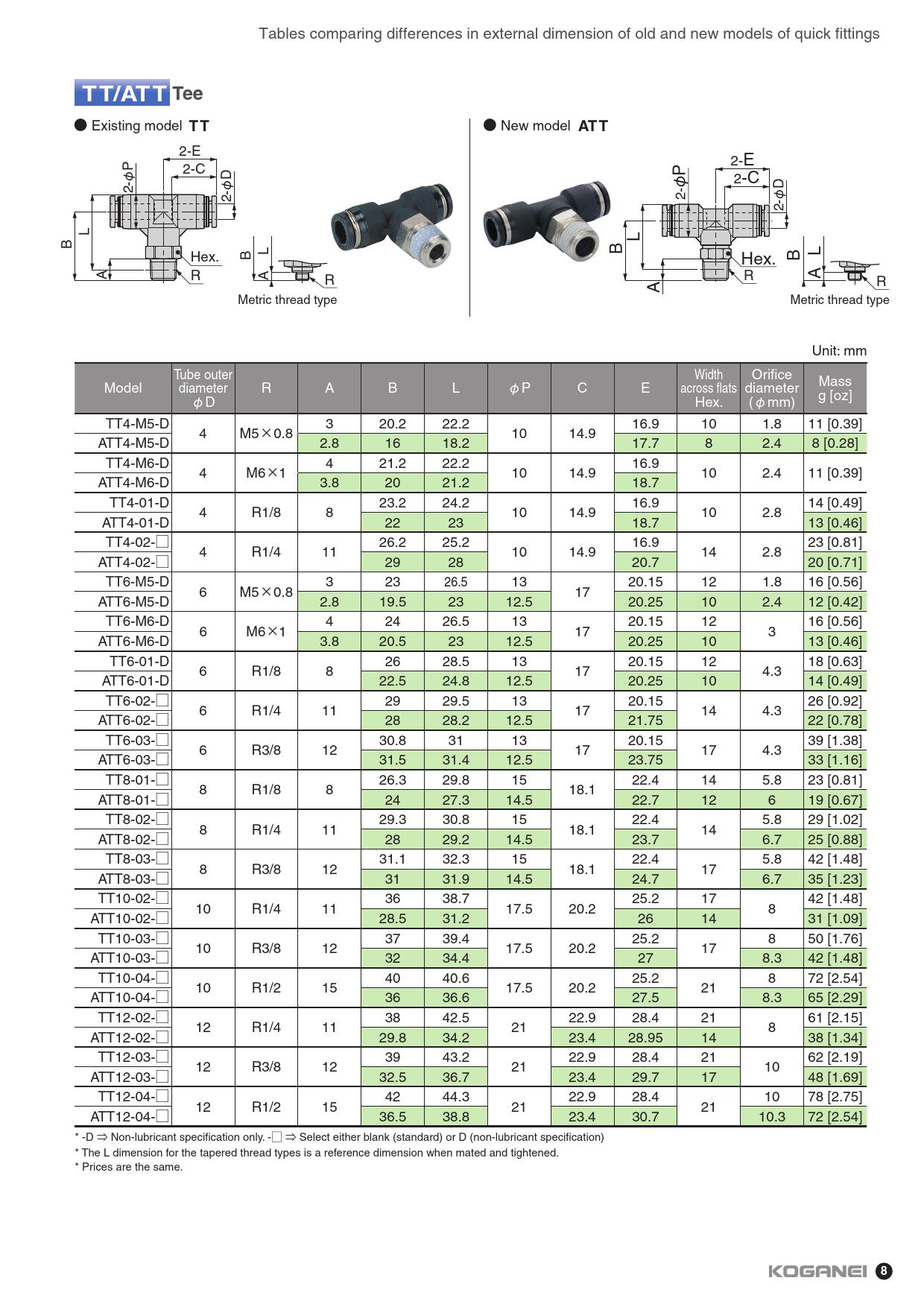

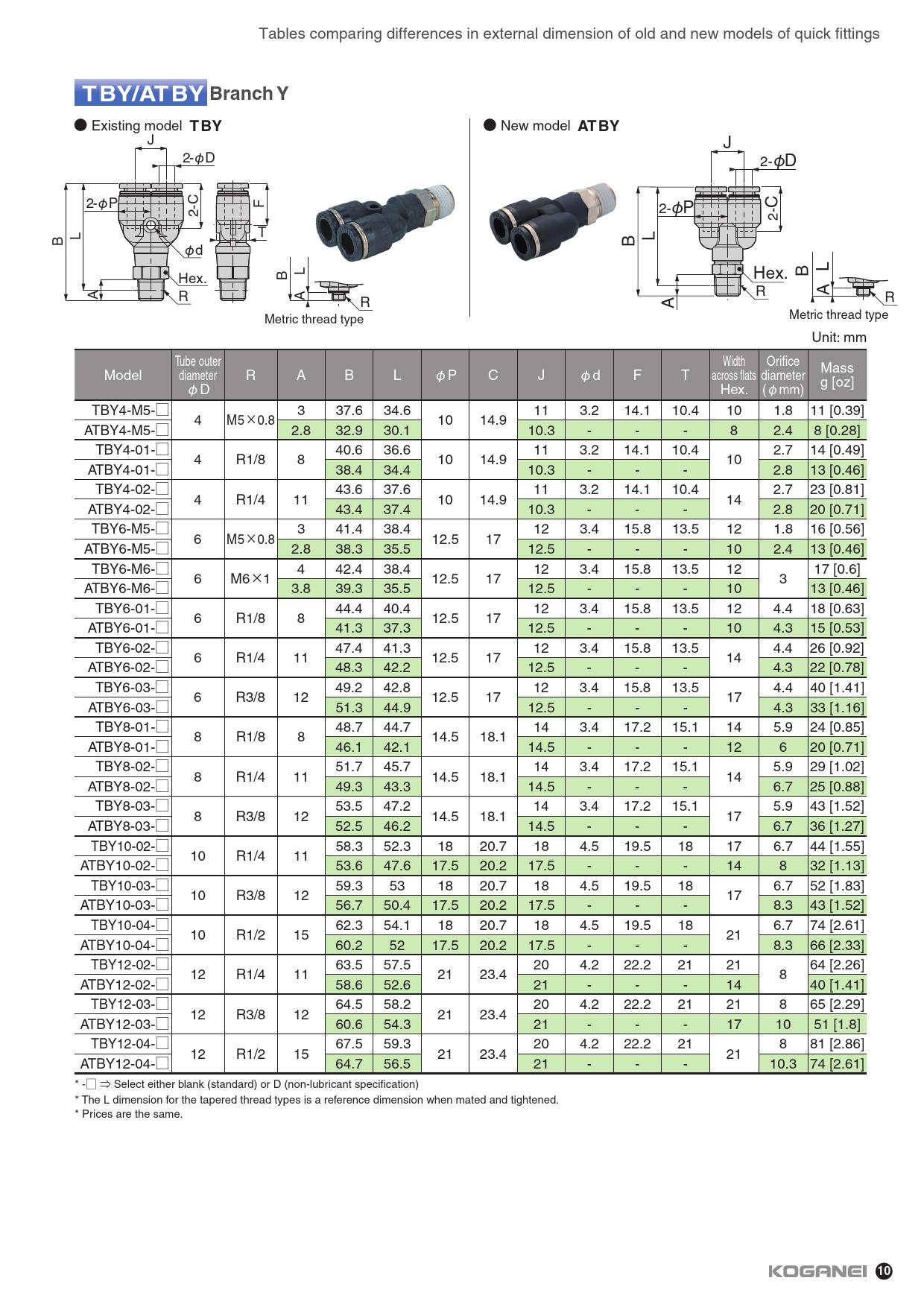

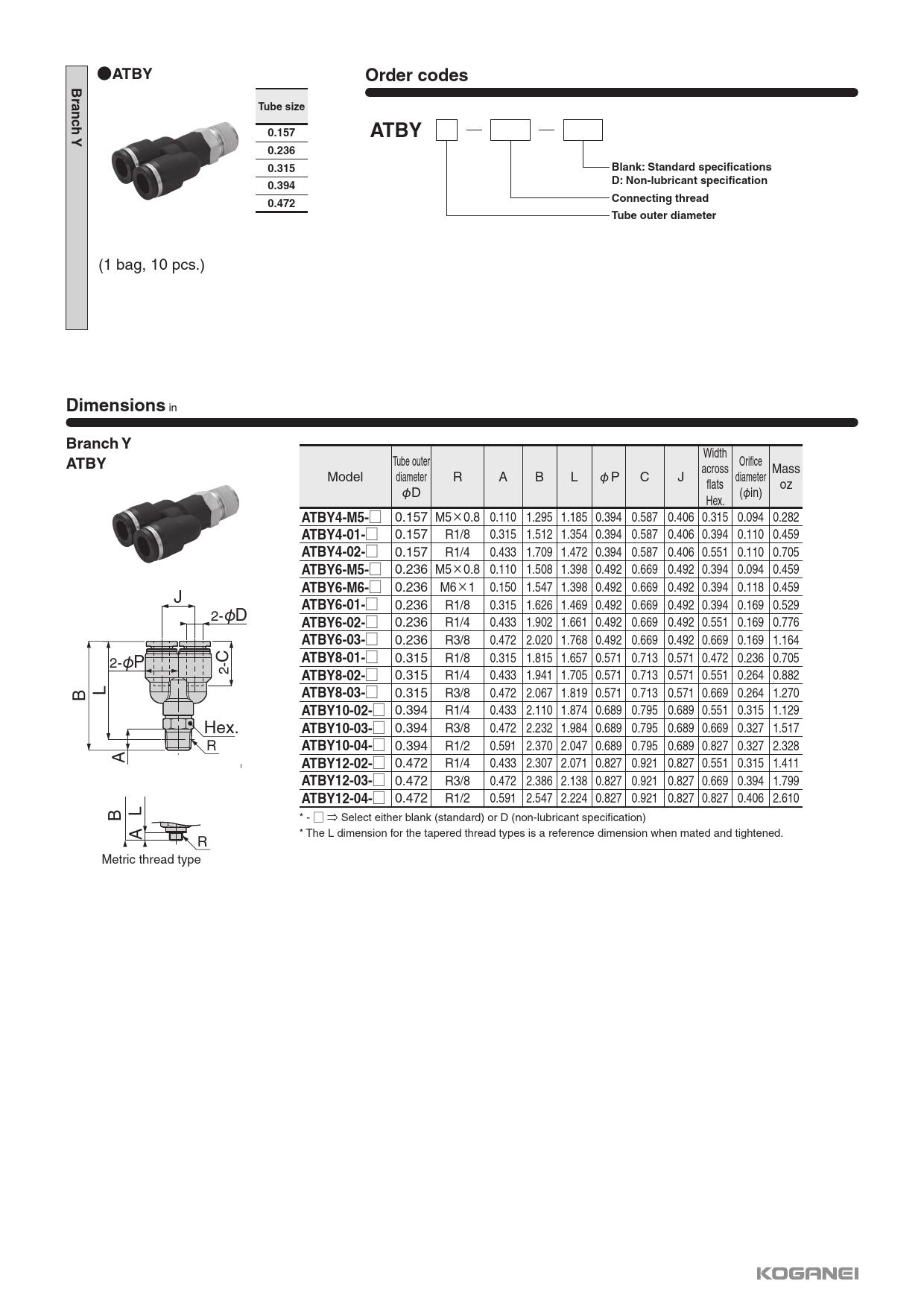

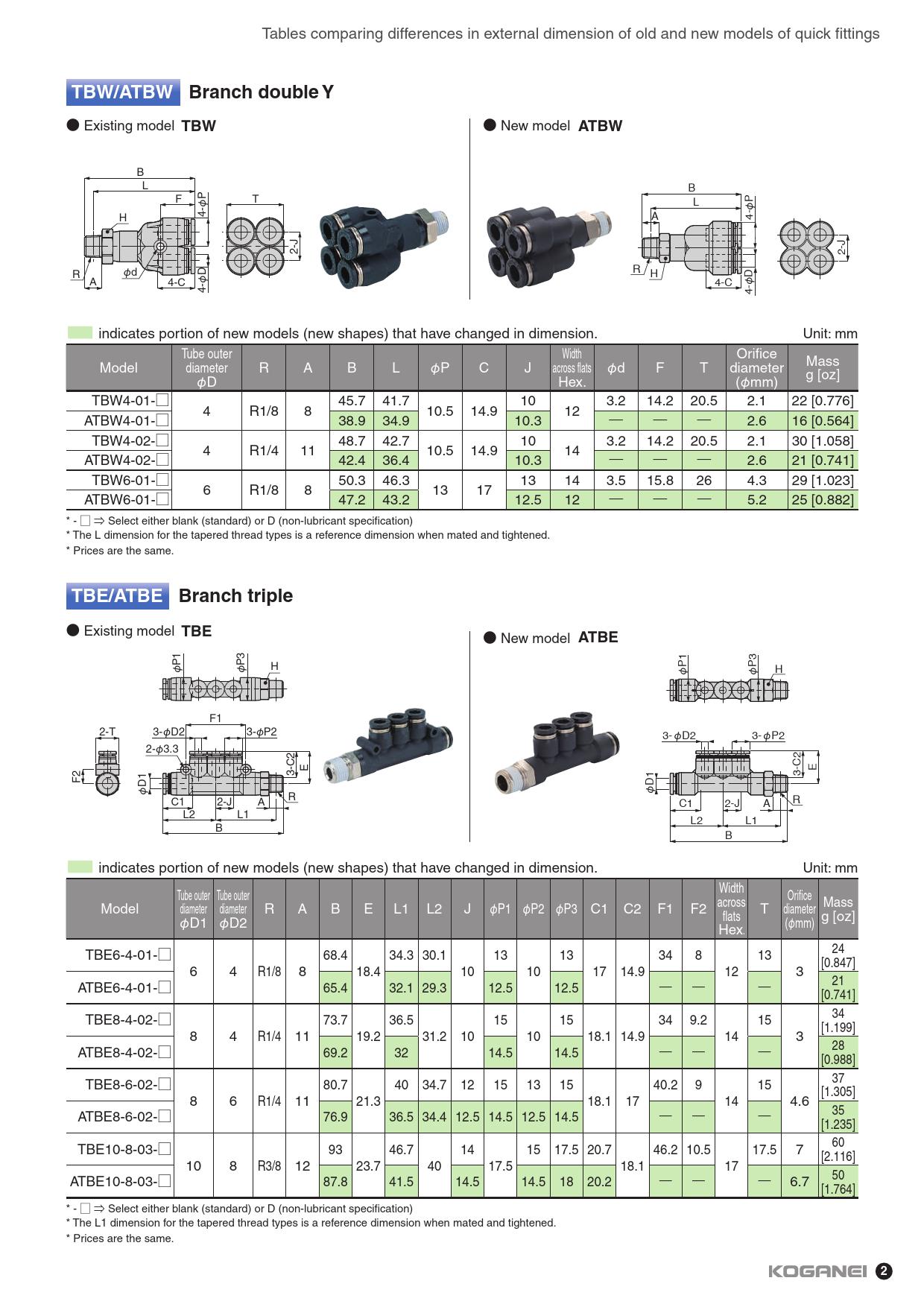

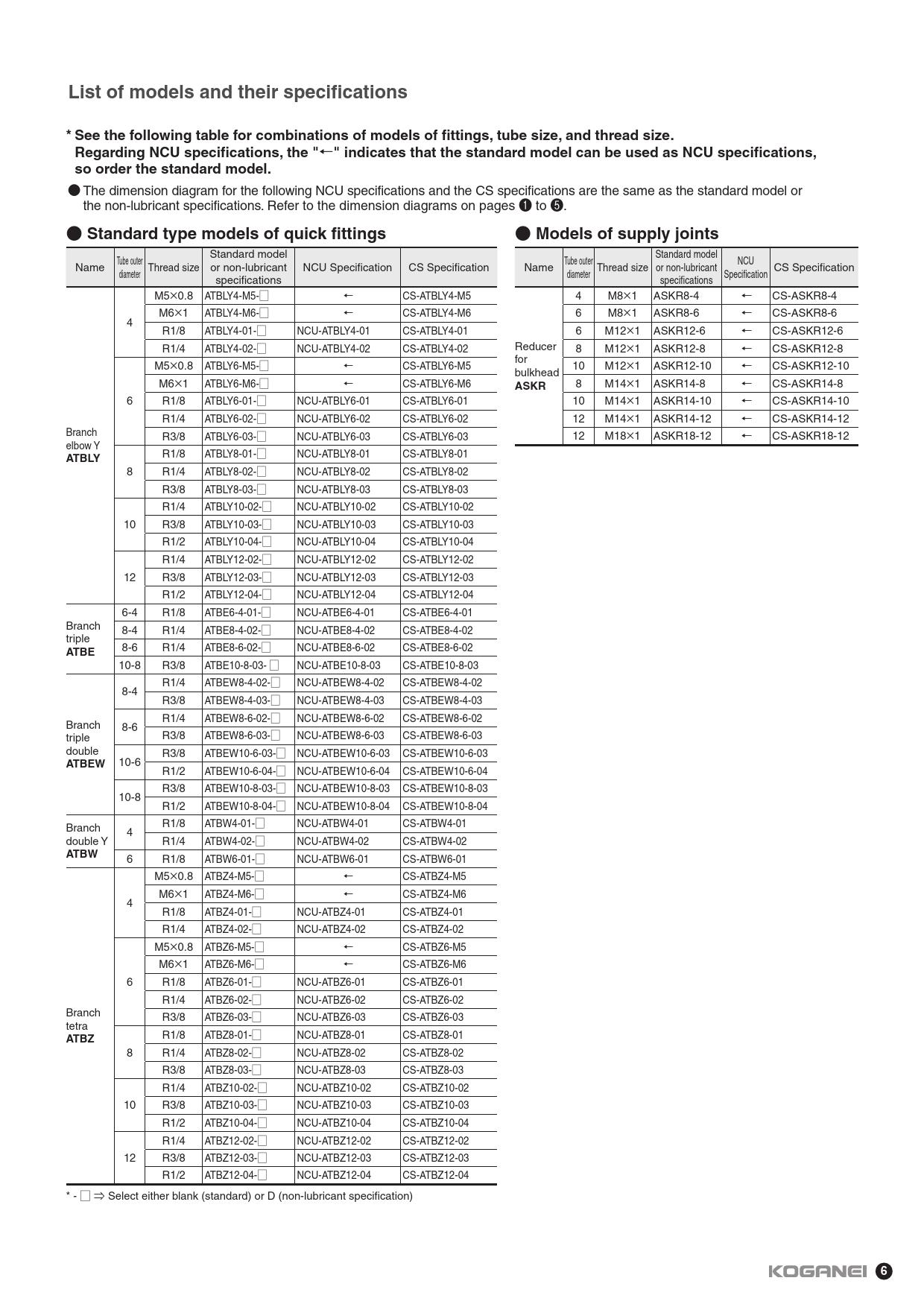

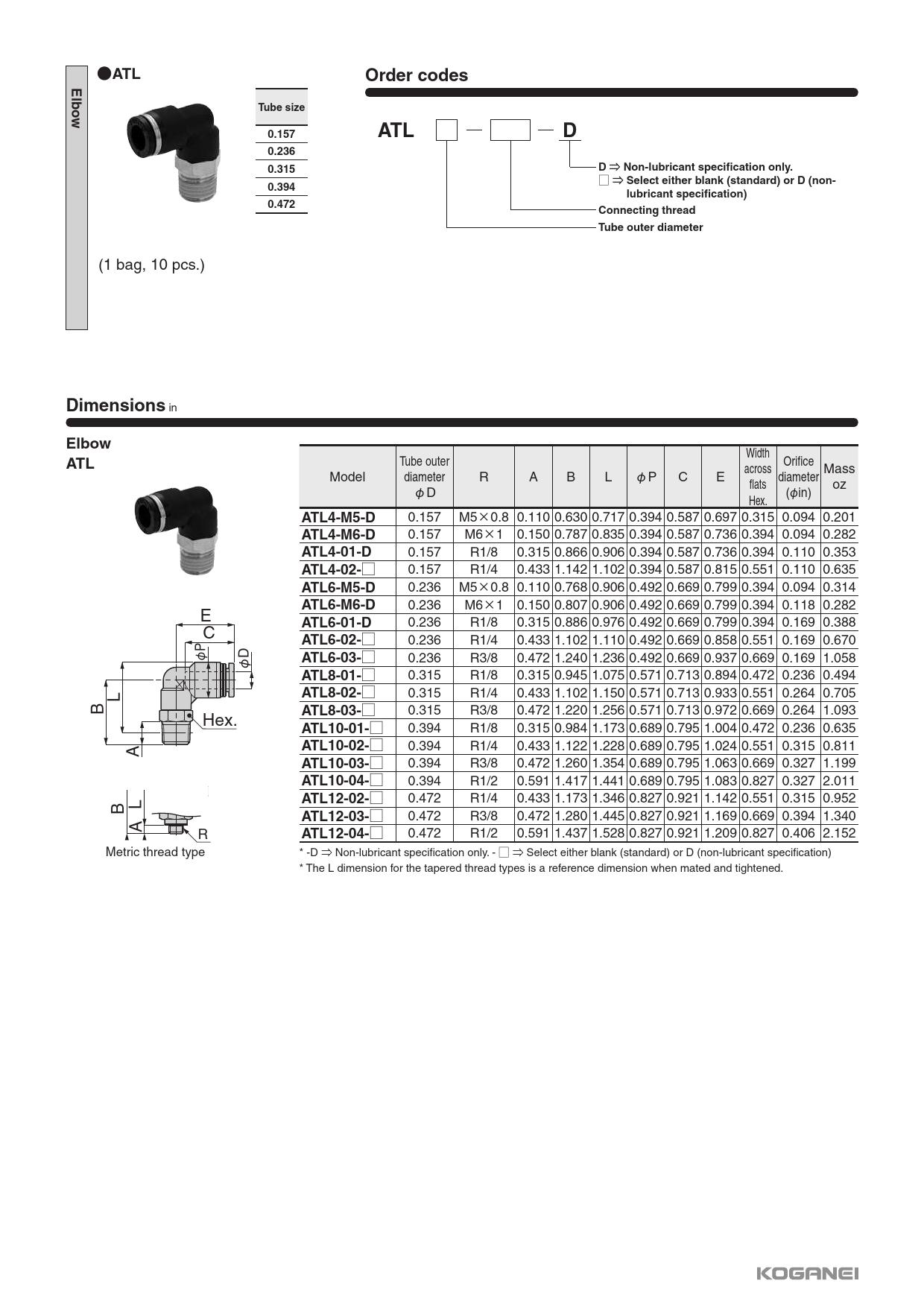

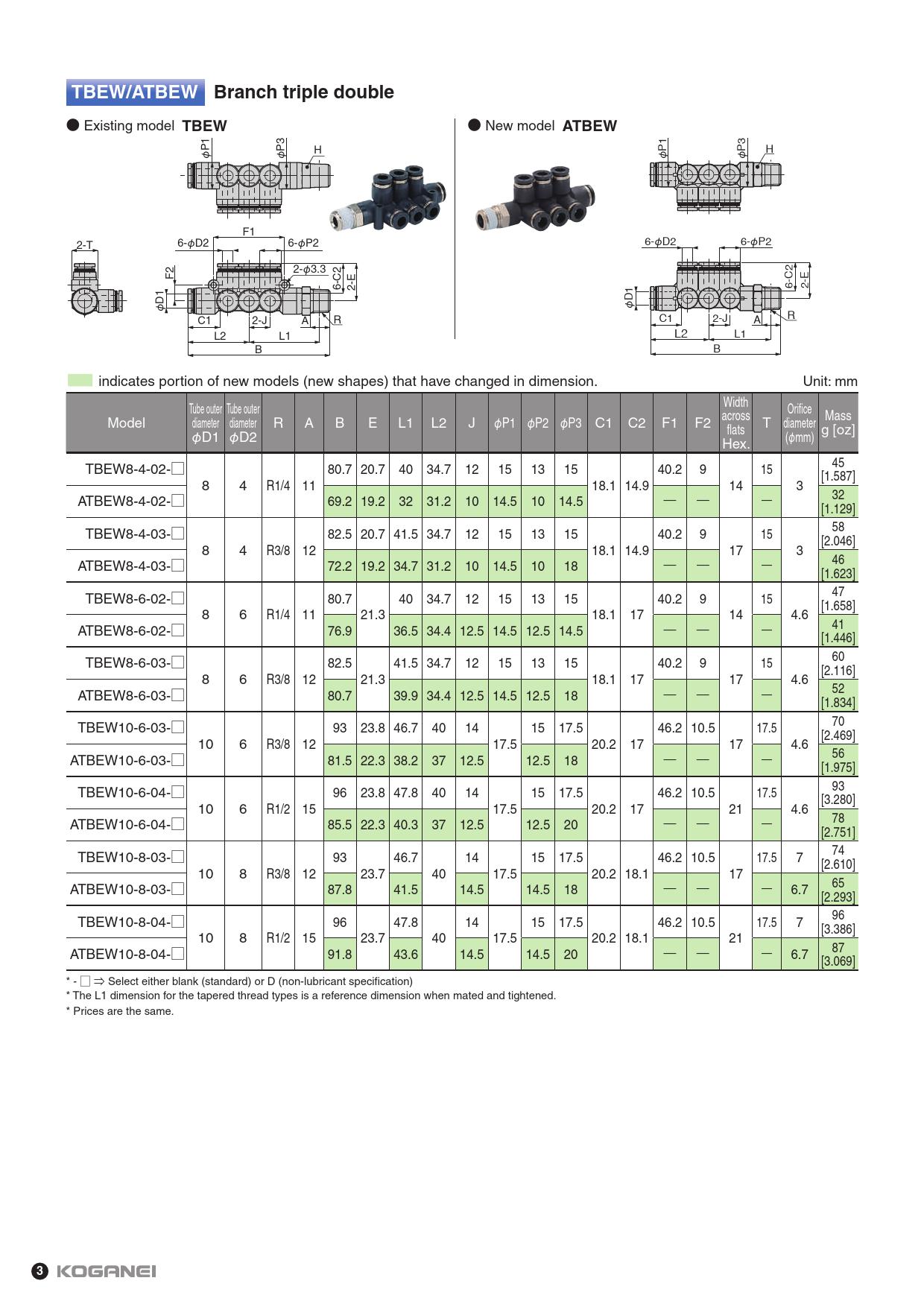

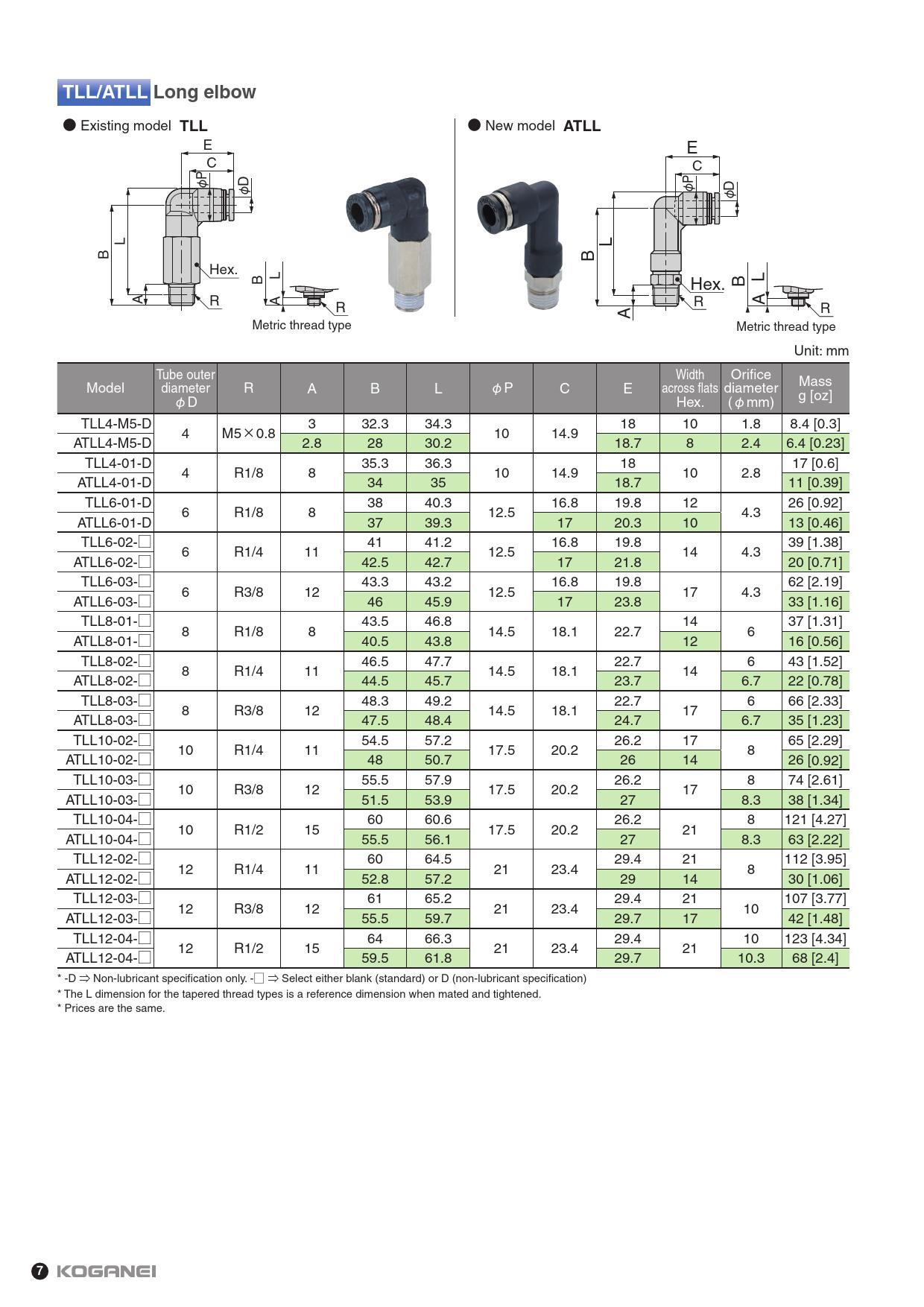

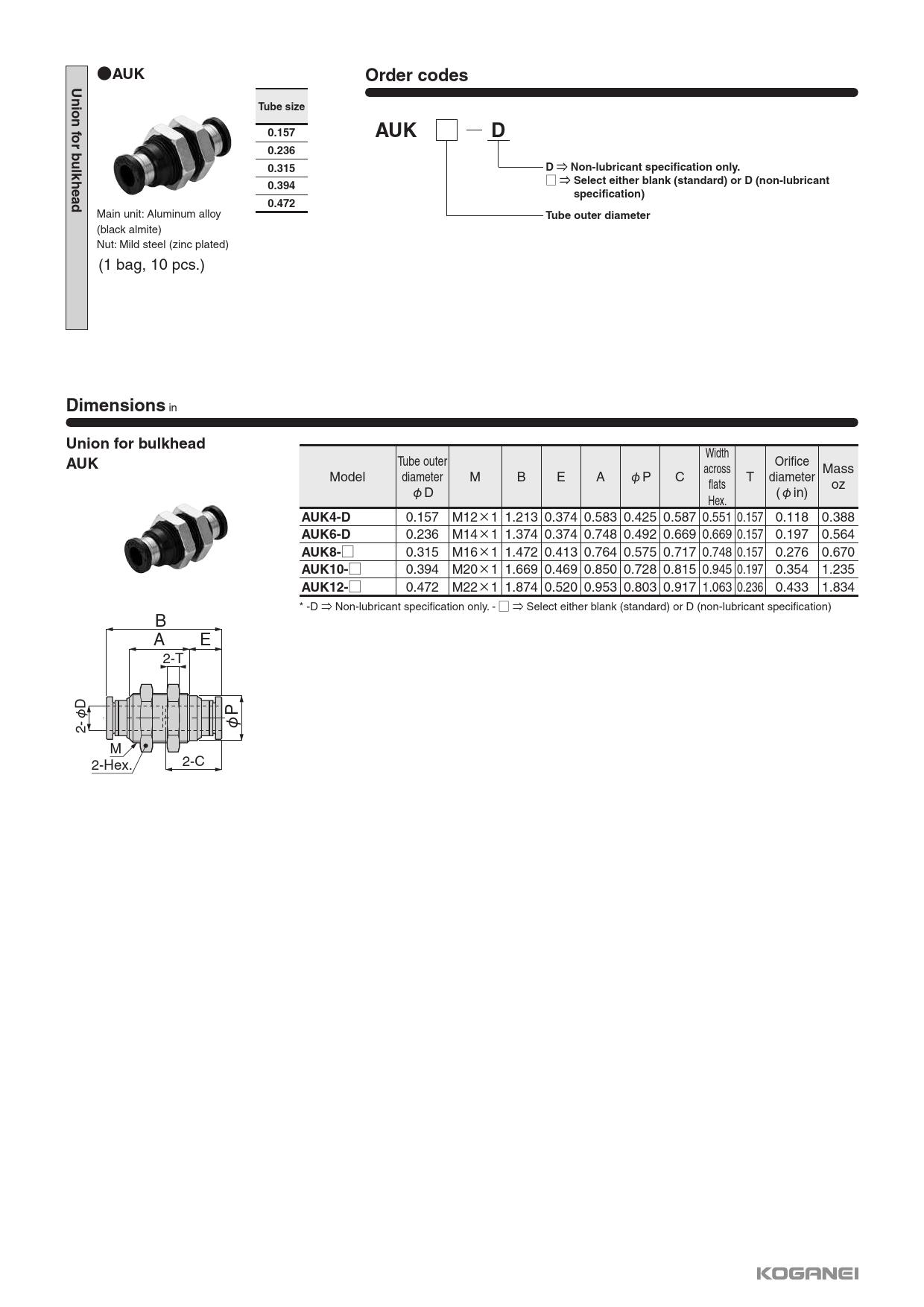

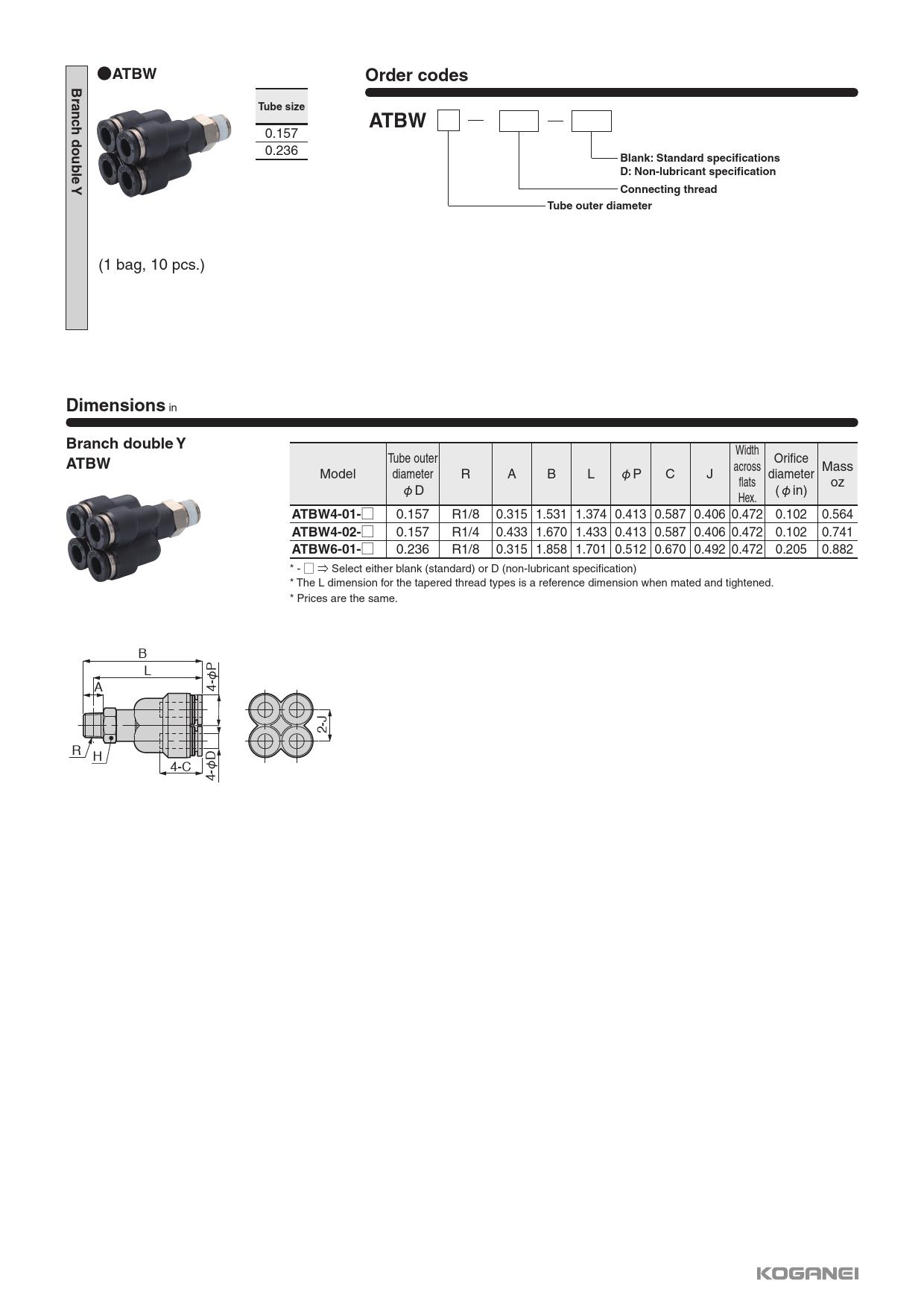

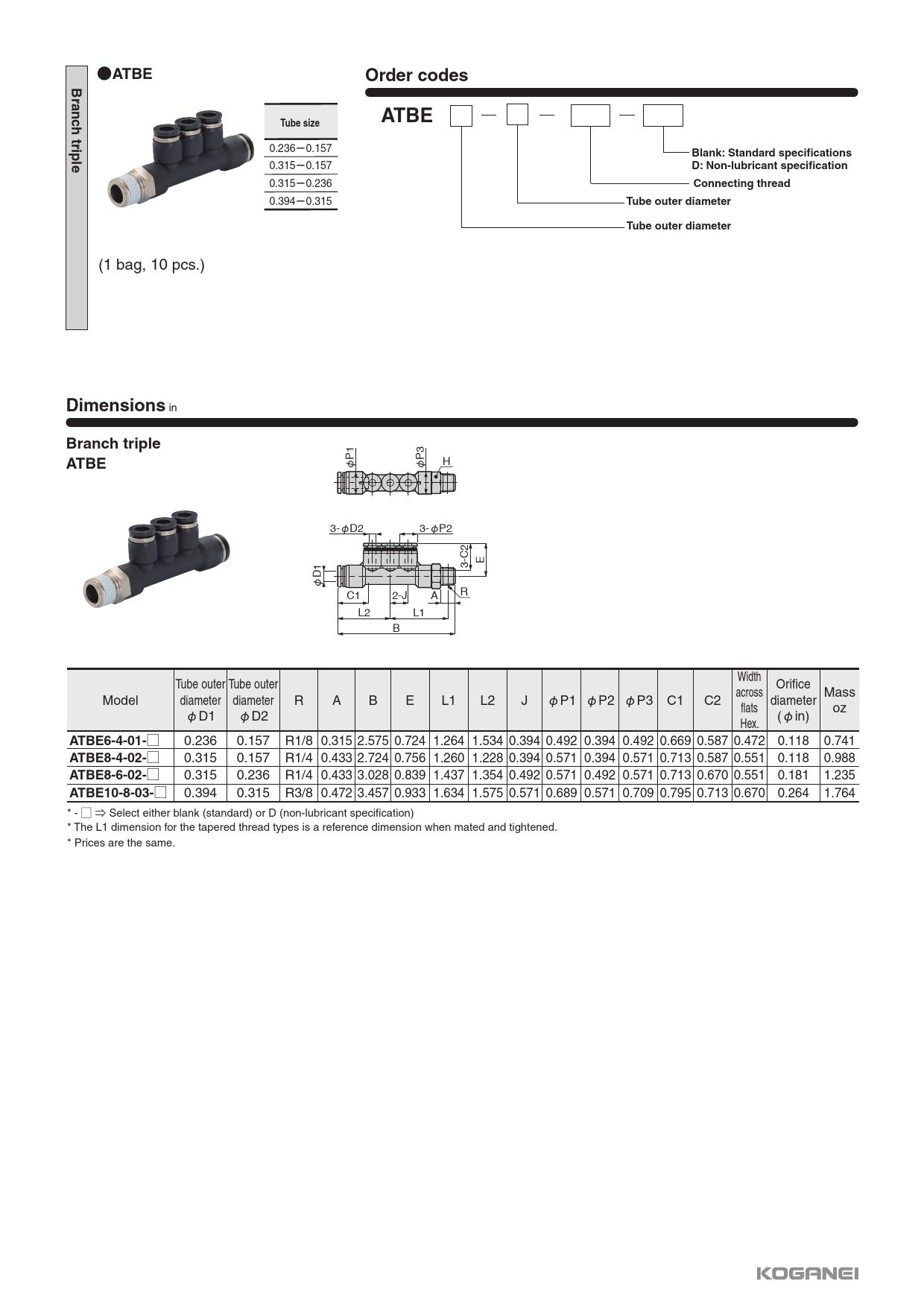

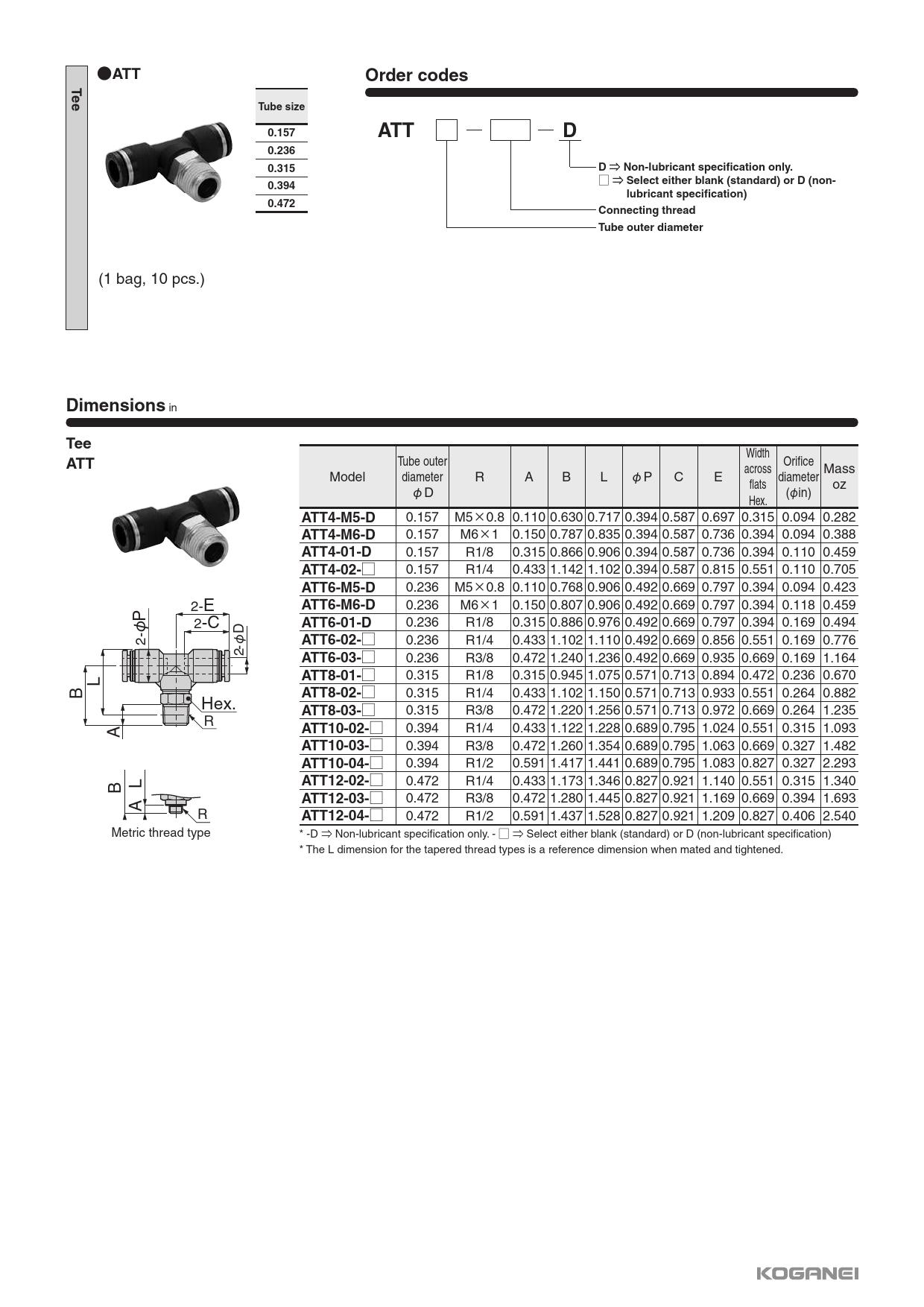

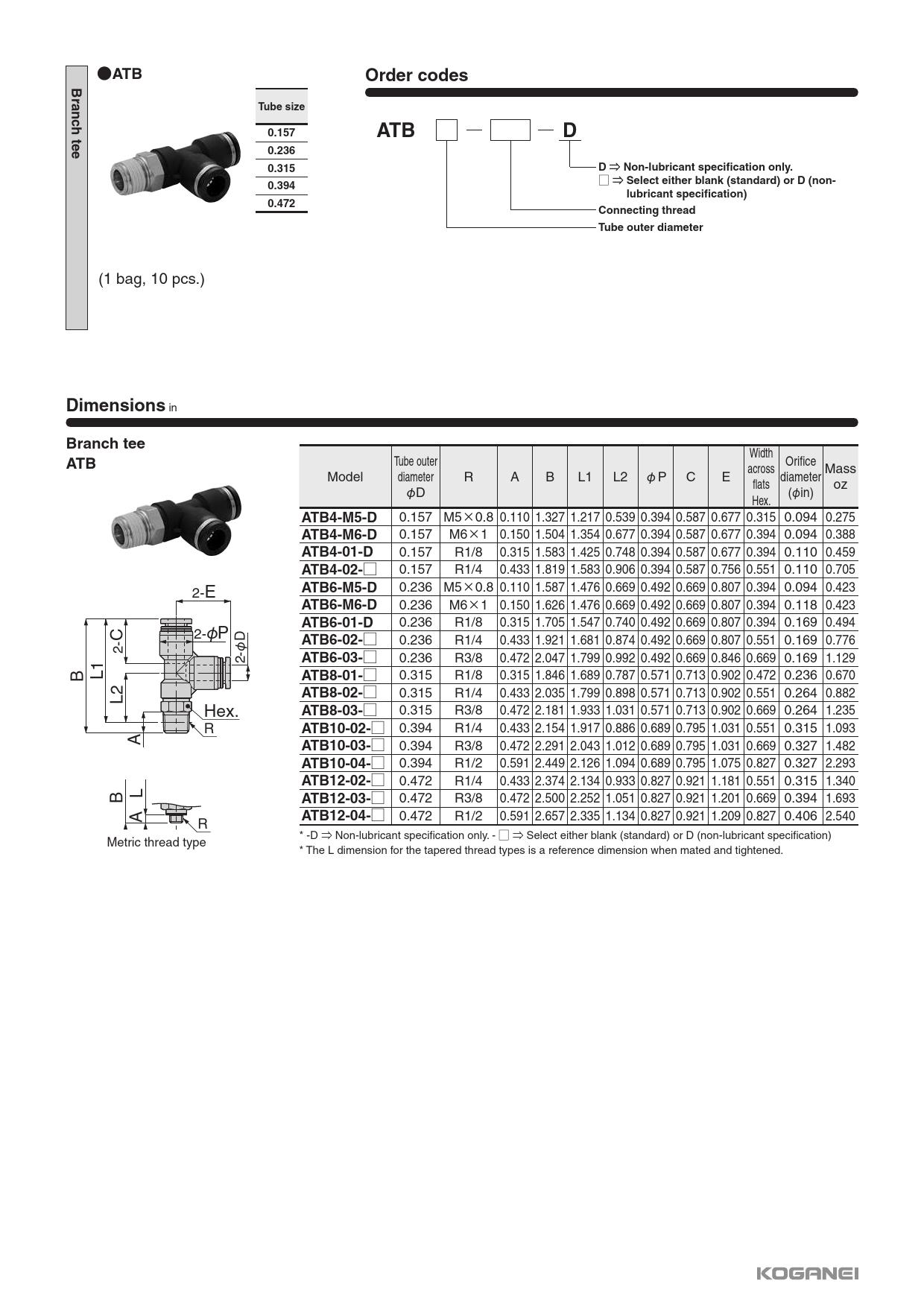

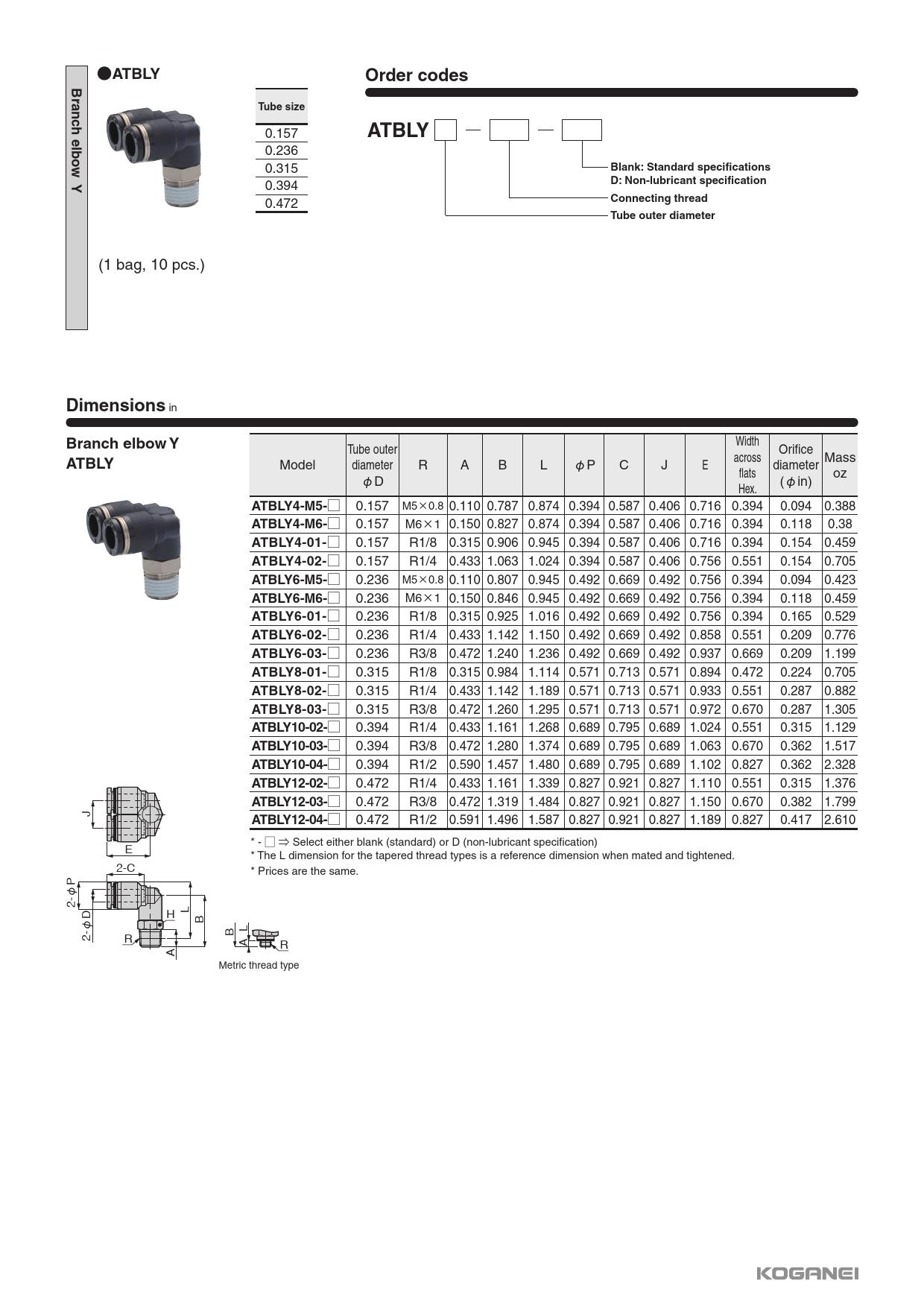

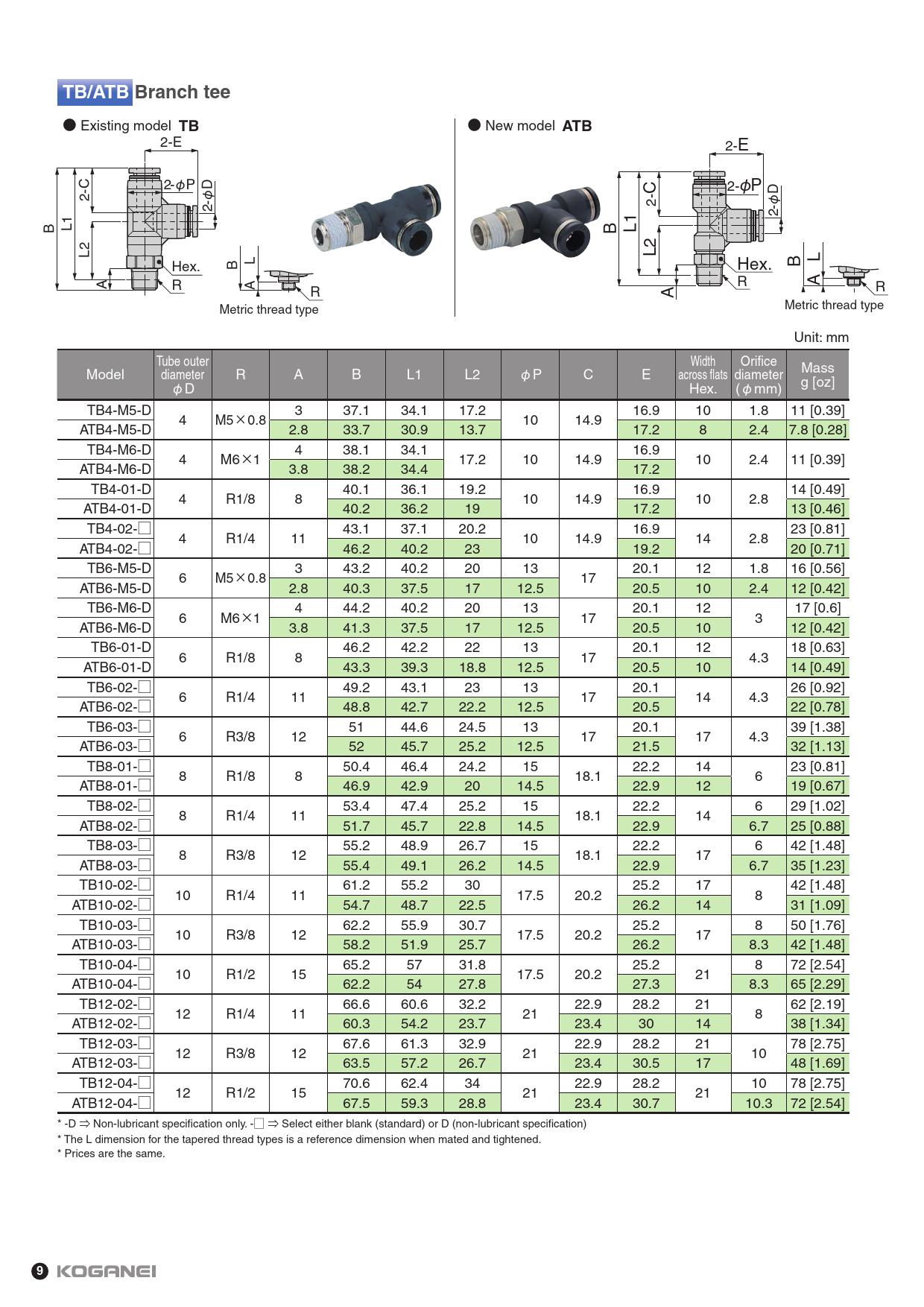

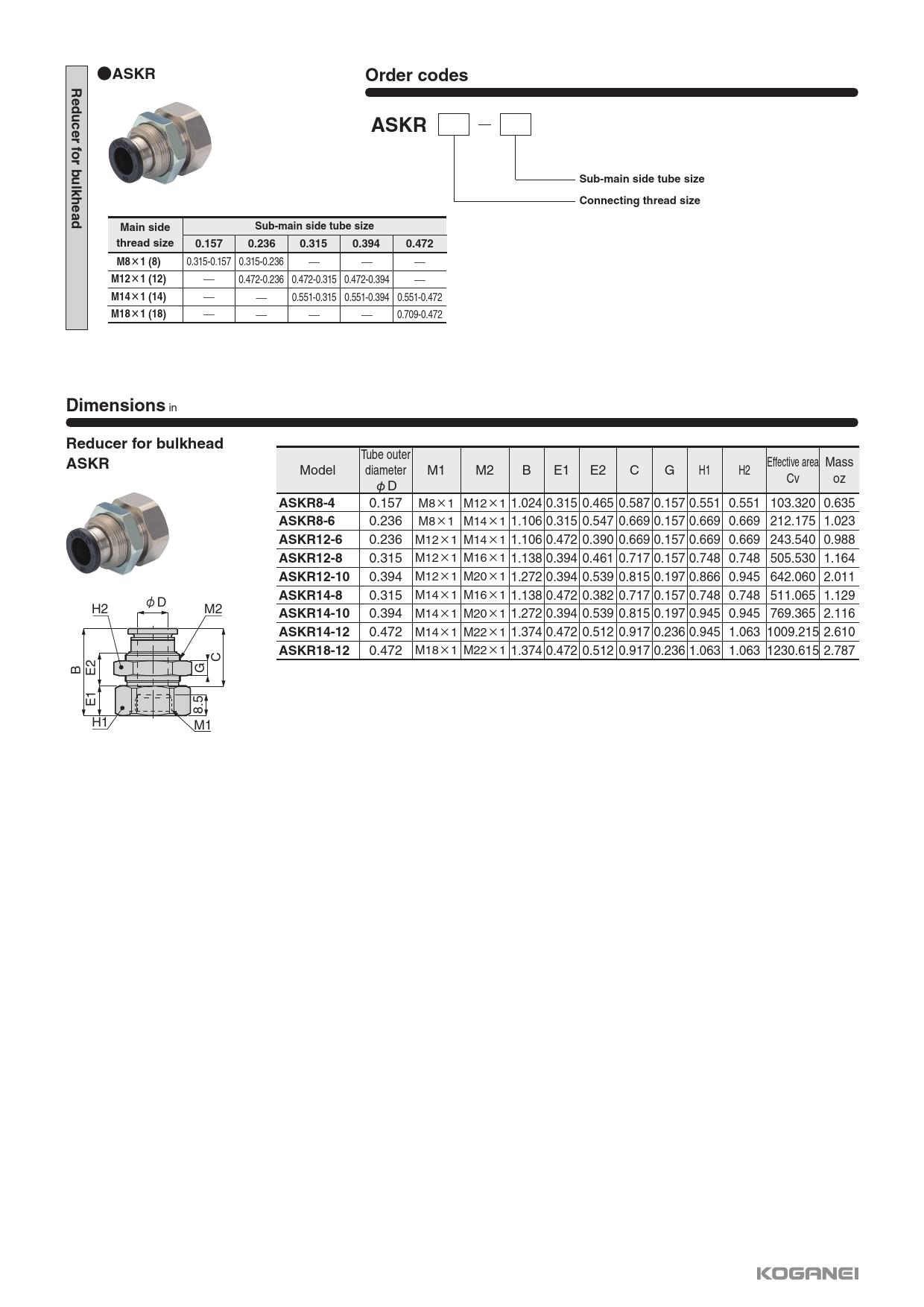

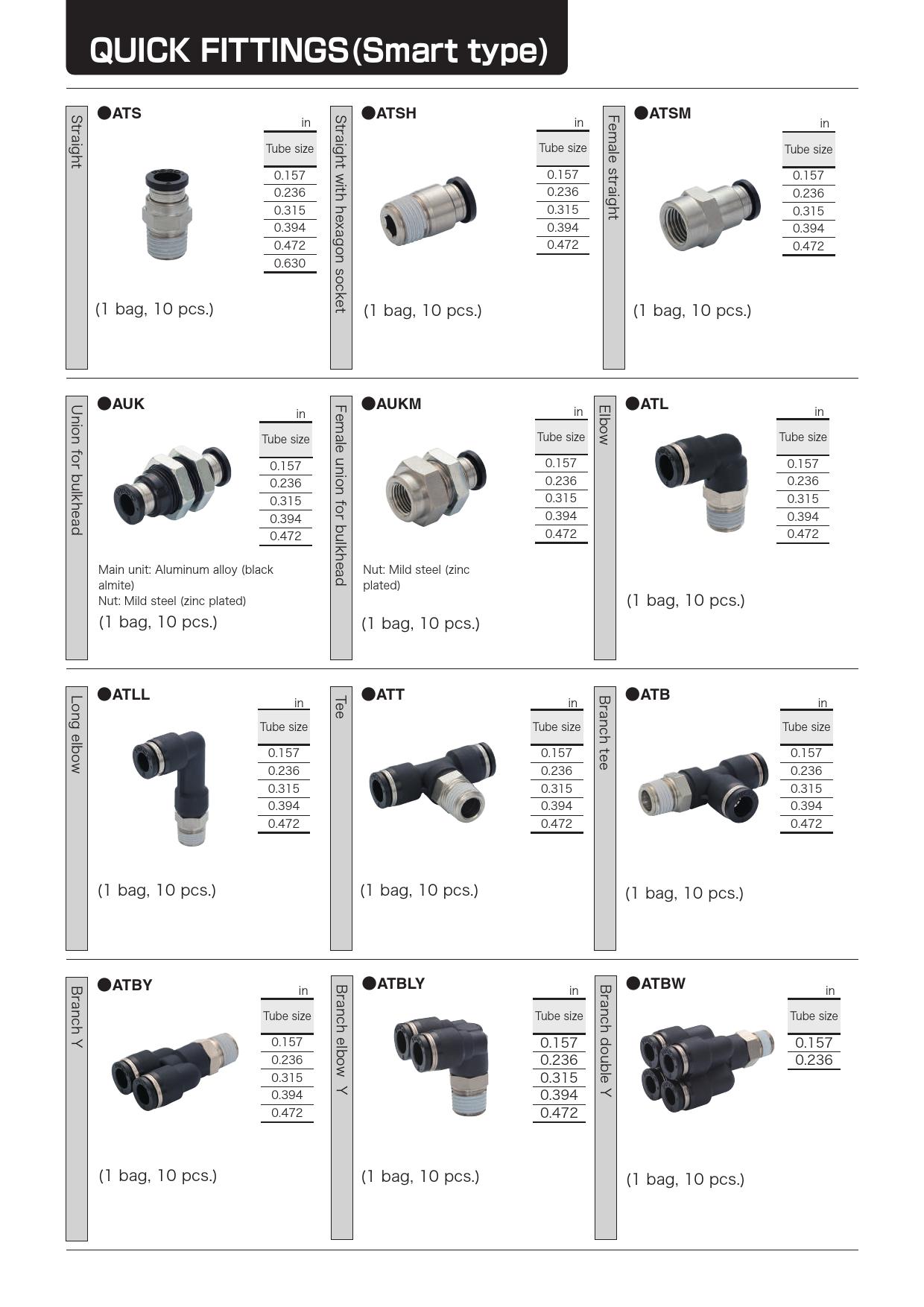

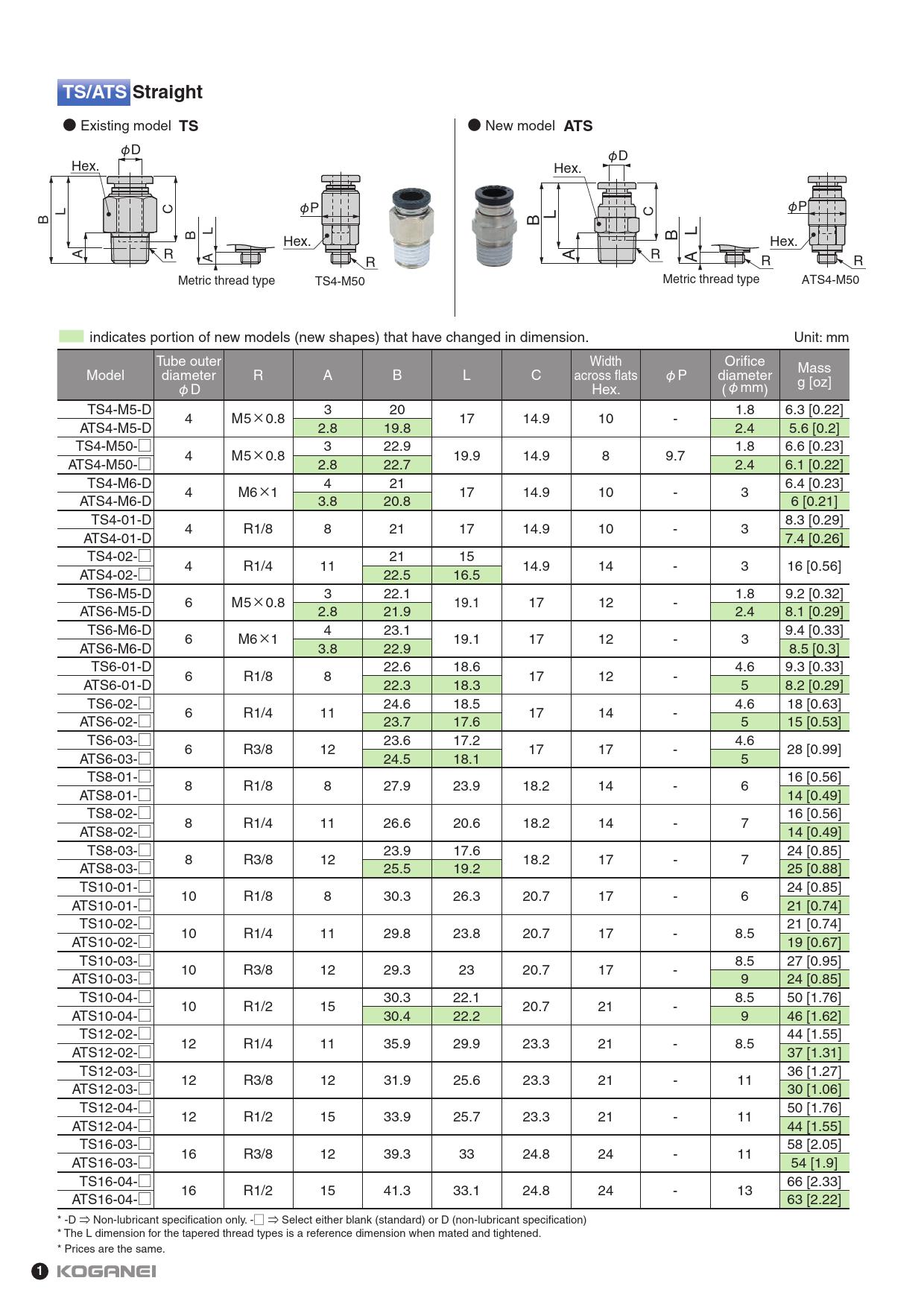

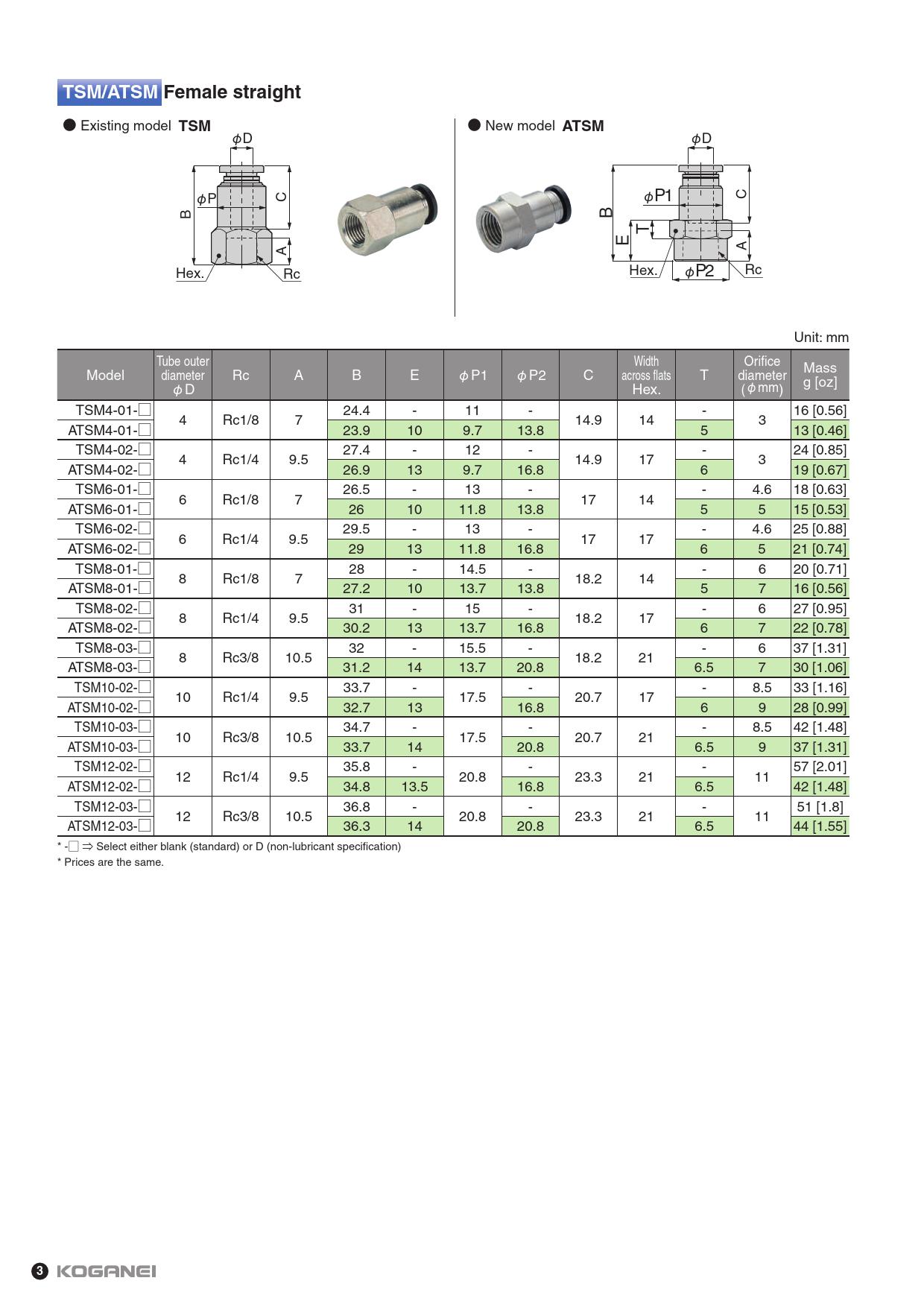

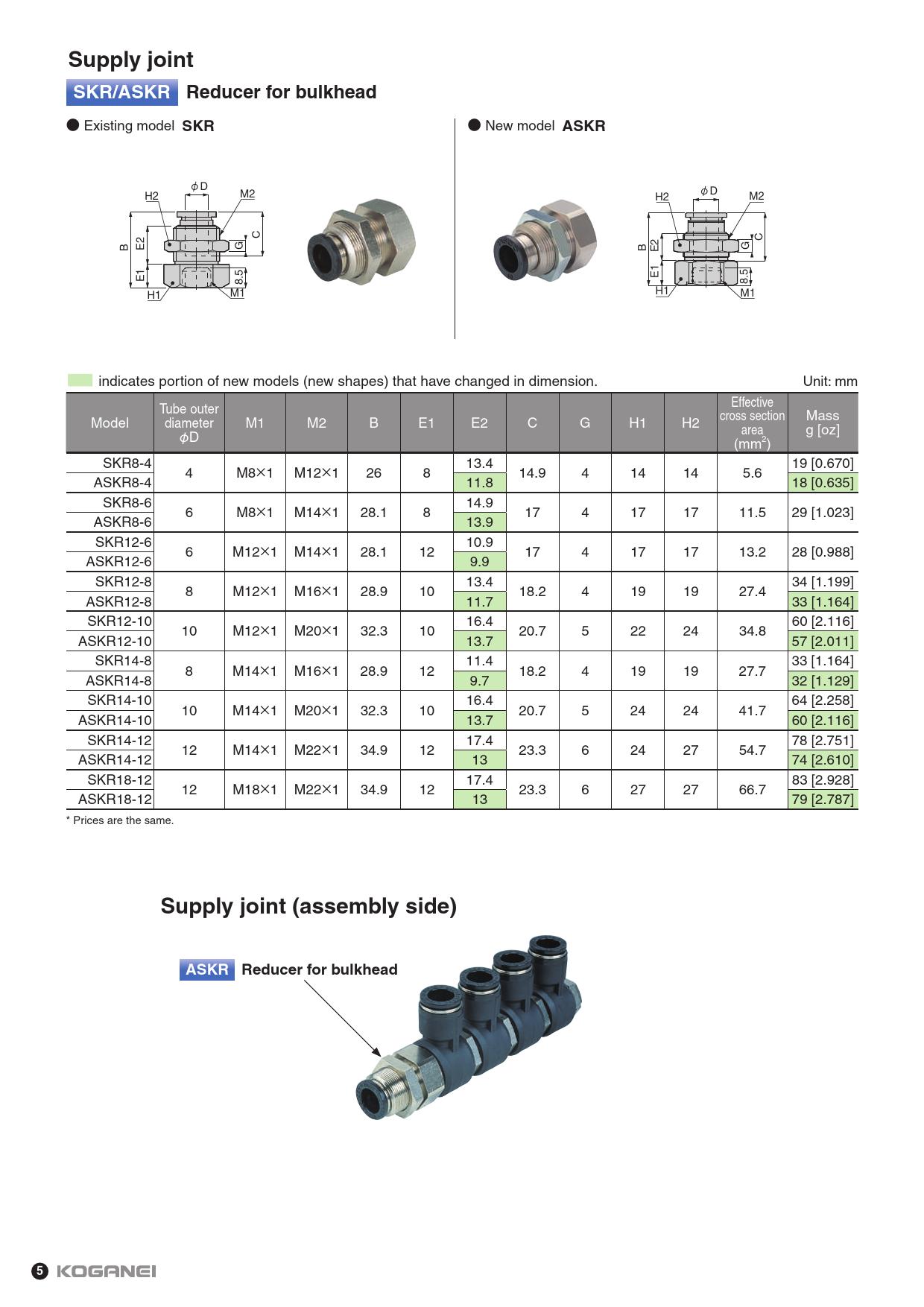

※Smart Type models are those that start with "A." Refer to the drawings and make selections in accordance with dimension differences with existing models.
